Description

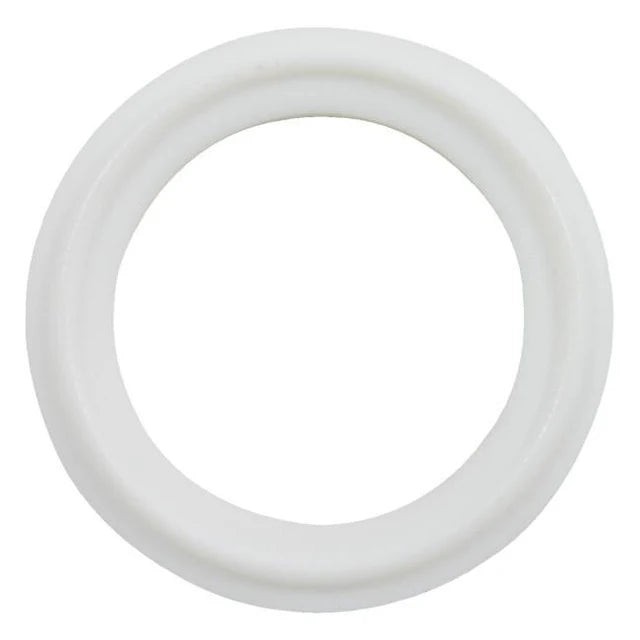

Maximum Chemical Resistance. Built for High-Purity Applications. PTFE Tri-Clamp® Gaskets are the industry standard for chemically aggressive and high-temperature processes where purity and inert performance are critical. Constructed from virgin PTFE, these gaskets offer exceptional resistance to solvents, hydrocarbons, and process fluids with virtually no extractables—making them ideal for demanding extraction environments.

Where This Gasket Excels

Extreme Chemical Compatibility. Handles hydrocarbons, ethanol, and aggressive solvents without degradation.

High Temperature Performance
Operating range from -100°F to 500°F

Ultra-Low Extractables
Maintains product purity with minimal absorption or contamination risk

Long Service Life
Performs reliably in steam, water, and continuous processing environments

Important Application Notes (Read This)
This is a rigid gasket with no elastomer memory.

Not recommended for systems with frequent temperature cycling

Not ideal where seal recovery or flexibility is required

Not suitable for misaligned ferrules

If your system has:

Temperature fluctuation

Clamp inconsistency

Slight misalignment

Upgrade to a PTFE / elastomer hybrid (Tuf-Flex® / envelope style) for a more forgiving seal.
For best performance, use high-pressure clamps to maintain proper compression.

Specifications

Material: PTFE

Style: Tri-Clamp®

Type: Type I (Unflanged)

Temperature Range: -100°F to 500°F

Color Code: No dot

Origin: Made in USA

Sold: Individually

Certifications & Compliance

FDA CFR 21 (177.1550 / 177.2600)

USP Class VI Certified

ADI Free® (Animal Derived Ingredient Free)

USDA & 3-A Sanitary Standards

ASME-BPE Compliant (Type I & II)

Cytotoxicity Tested

Manufactured under cGMP

Performance Summary

Chemical Resistance: Excellent

Heat Resistance: Excellent

Flexibility / Seal Memory: Minimal

Absorption Rate: Extremely Low

Best Use Case: Stable systems with consistent compression and alignment

Storage Requirements

Shelf life: 20 years from cure date

Store in clean, dry environment

Keep out of direct sunlight

Maintain 65°F – 85°F

Store at least 6 ft away from electric motors

Available Configurations Also available in:

Type II (Flanged)

Screen, sock, and orifice gaskets

ANSI flange gaskets (150# / 300#)

Bevel seat, I-Line, Q-Line, DIN/ISO

X-ray / metal detectable options

Custom profiles and fabricated solutions

Solvent Direct Standard
We don’t recommend PTFE for every application—and that’s the difference.
If your system is stable, aligned, and properly clamped, this is one of the cleanest, most chemically resistant gasket solutions available.
If not, we will point you to a better solution.

Need help selecting the correct gasket for your system? We’ll spec it correctly the first time.
